Verilog Document Generator

Generate IP and subsystem documentation straight from Verilog RTL

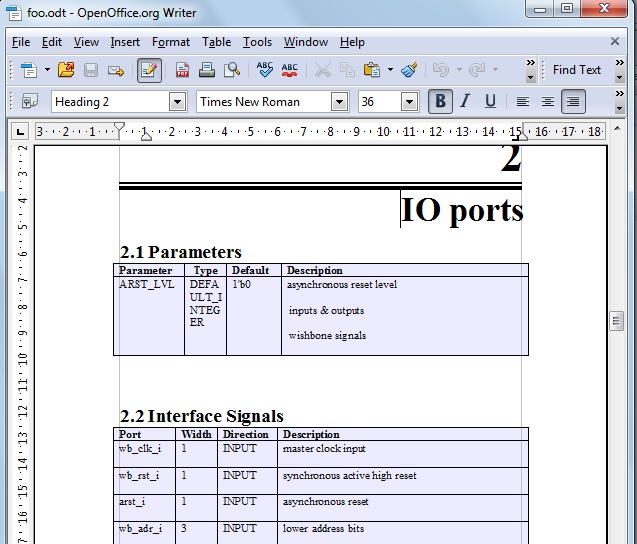

This utility has been developed to generate documentation of the IP/SubSystem from its RTL definition. I primarily populates the Parameters, Ports and the REGISTER details to ensure that this doc is correct by construction. It tries to extract the inline comments in the RTL and populate the relevant description section. The user is advised to review the generated description to make it look better.

Part of the EDAUtils toolset

  • Baya - AI-enabled SoC integration with IP-XACT and a 200+ command Tcl API
  • IP-XACT 1685 solution - component packaging, registers, memory maps and generators
  • RTL utilities - parsers, translators, testbench and document generators
  • Run online free - try this tool in the browser, no install
Download Verilog Document Generator →
